RXBH
RAIXIN
8537109090
RXBH Floor Standing Distribution Cabinet can not detachable, the body is bent from a complete sheet steel. Back plate is welded onto a flanged rear profile for higher protection.
Material
Body : 1.5mm sheet steel Mounting plate : 2.0mm sheet steel Door :2.0mm sheet steel Protection degree:IP 55
Against mechanical impacts: Ik10
Surface finish
Body and door :Epoxy polyester powder coating textured finish Mounting plate: Epoxy polyester powder coating flat finish
Color
Body and door :RAL7032 RAL7035
Mounting plate: RAL 2000 OR galvanized steel
Enclosures body

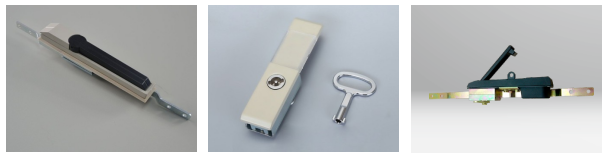

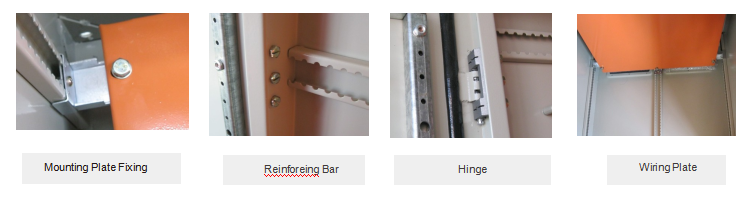

Door with locking system and hinges Mounting plate
Fixing Accessories
Bottom with removable cables entry 4 lifting eyebolts
Plinth to be offered separately
MODE | Height(MM) | Width(MM) | Depth(MM) | No. Of Doors | MODE | Height(MM) | Width(MM) | Depth(MM) | No. Of Doors |
RXBH1010/30 | 1000 | 1000 | 300 | 2 | RXBH188/50 | 1800 | 800 | 500 | 1 |
RXBH88/30 | 800 | 800 | 300 | 1 | RXBH188/60 | 1800 | 800 | 600 | 1 |
RXBH128/30 | 1200 | 800 | 300 | 1 | RXBH1810/60 | 1800 | 1000 | 400 | 2 |
RXBH1210/30 | 1200 | 1000 | 300 | 2 | RXBH1810/50 | 1800 | 1000 | 500 | 2 |
RXBH1212/40 | 1200 | 1200 | 400 | 2 | RXBH1812/40 | 1800 | 1200 | 400 | 2 |
RXBH1460/30 | 1400 | 600 | 300 | 1 | RXBH1812/50 | 1800 | 1200 | 500 | 2 |
RXBH1460/40 | 1400 | 600 | 400 | 1 | RXBH1816/40 | 1800 | 1600 | 400 | 2 |
RXBH1480/30 | 1400 | 800 | 300 | 1 | RXBH1816/50 | 1800 | 1600 | 500 | 2 |
RXBH1480/40 | 1400 | 800 | 400 | 1 | RXBH206/30 | 2000 | 600 | 300 | 1 |
RXBH1410/40 | 1400 | 1000 | 400 | 2 | RXBH206/40 | 2000 | 600 | 400 | 1 |
RXBH1412/40 | 1400 | 1200 | 400 | 2 | RXBH208/30 | 2000 | 800 | 300 | 1 |
RXBH1660/30 | 1600 | 600 | 300 | 1 | RXBH208/40 | 2000 | 800 | 400 | 1 |
RXBH1660/40 | 1600 | 600 | 400 | 1 | RXBH208/50 | 2000 | 800 | 500 | 1 |
RXBH168/30 | 1600 | 800 | 300 | 1 | RXBH208/60 | 2000 | 800 | 600 | 1 |
RXBH168/40 | 1600 | 800 | 400 | 1 | RXBH2010/40 | 2000 | 1000 | 400 | 2 |
RXBH1610/30 | 1600 | 1000 | 300 | 2 | RXBH2010/50 | 2000 | 1000 | 500 | 2 |
RXBH1610/40 | 1600 | 1000 | 400 | 2 | RXBH2012/40 | 2000 | 1200 | 400 | 2 |
RXBH1612/30 | 1600 | 1200 | 300 | 2 | RXBH2012/50 | 2000 | 1200 | 500 | 2 |
RXBH1612/40 | 1600 | 1200 | 400 | 2 | RXBH2012/60 | 2000 | 1200 | 600 | 2 |
RXBH186/30 | 1800 | 600 | 300 | 1 | RXBH2016/40 | 2000 | 1600 | 400 | 2 |
RXBH186/40 | 1800 | 600 | 400 | 1 | RXBH2016/50 | 2000 | 1600 | 500 | 2 |
RXBH188/30 | 1800 | 800 | 300 | 1 | RXBH2016/60 | 2000 | 1600 | 600 | 2 |
RXBH188/40 | 1800 | 800 | 400 | 1 |
